SecuriSmoke ASD 531/532/535: Our aspirating smoke detectors for early fire detection.
The complete aspirating smoke detector solution for every monitoring area.
The benefits of our early-warning fire systems:
- Ultra-fast smoke detection and intervention options
- Scalable to meet every need
- Maximum cost-effectiveness
- Extremely easy to use
- Robust and durable
- Based on many years of experience
- Developed in Switzerland, made in Germany
- Everything from a single source
Personal and professional.
Let our experts advise you.

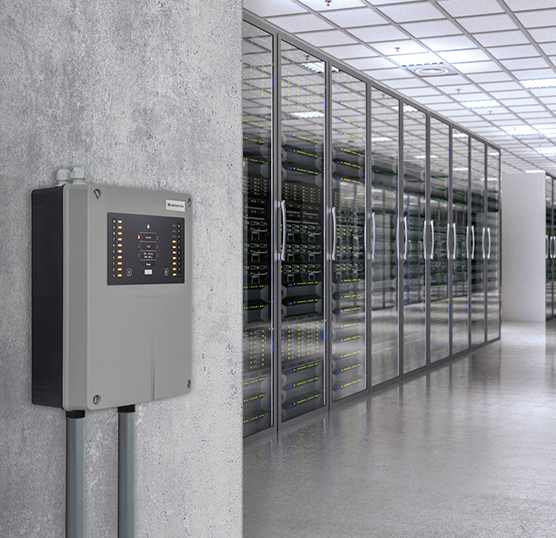

SecuriSmoke ASD: ultra robust and highly sensitive
Robust and low-noise, with pinpoint reactions to even the slightest presence of smoke: SecuriSmoke ASD aspirating smoke detectors meet the highest standards and rank among the world’s leading early fire detection devices. Benefiting from universally accepted certifications, our aspirating smoke detectors are in successful use world-wide. Dust-proof and resistant to strong jets of water, they boast minimal noise and are perfect for even the most sensitive environments.
An integrated status indicator enables monitoring directly on the device. The ASDConfig software tool offers simple handling – from commissioning through to support.
The SecuriSmoke aspirating smoke detector is equipped with highly sensitive smoke sensors. They detect even the tiniest smoke particles with their ultra-low alarm threshold of 0.02%/m and a maximum sensitivity of 0.002%/m. This enables the earliest possible detection and targeted intervention in several stages, thus minimising the risk of fire damage.
The ASD 531, 532 or 535 can be integrated seamlessly into superordinate systems, such as our SecuriFire system.

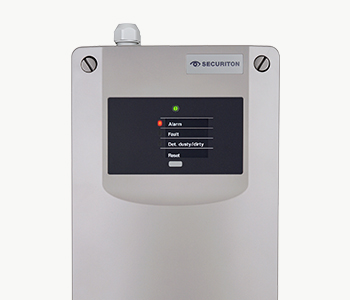

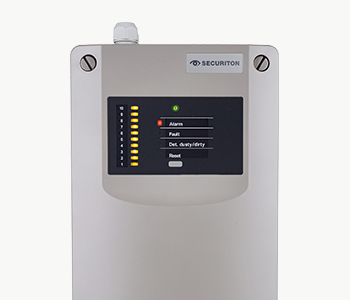

SecuriSmoke ASD: Systems in comparison

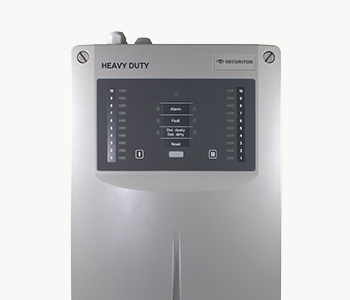

| ASD 531 | ASD 532 | ASD 535-3 | ASD 535-4 | ASD 535-3 /-4 HD | ||
| Sensors per Unit | 1 | 1 | 1 | 2 | 1 or 2 | |
| Sensitivity | % obs/m | 0,006 | 0,002 | 0,002 | 0,002 | 0,002 |
| Sampling Points | Per Class A / B / C | 6 / 8 / 12 | 8 / 12 / 16 | 18 / 56 / 120 | 36 / 112 / 240 | 36 / 112 / 240 |
| Aggr. Tube Length | m | 75 | 120 | 300 | 2 x 300 | 2 x 300 |
| Max. Area | m2 | 720 | 1280 | 2880 | 5760 | 5760 |
| Operation Temp. Range | °C | -10 … +55 | -20 … +60 | -30 … +60 | -30 … +60 | -30 … +60 |
